12v CDI Ignition Coil Single HT Lead + 2 Terminals 3+6 (80mm)

£12.78Includes 20% VAT
In Stock
Pack size: Each
SKU: 005107

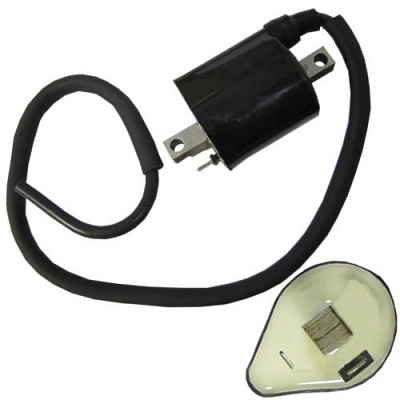

12v CDI Ignition Coil Single HT Lead + 2 Terminals 3+6 (80mm)

The CDI box wire or positive connection on this coil is the terminal with a piece of black plastic on it which sits above a fixing hole on the mounting bar while the other terminal is just wired to earth.

This coil is suitable for either the left or right hand cylinder if you have a twin.

  • 12v CDI ignition coil
  • 2 spade terminals
  • Centre-to-centre distance between mounting holes: 80mm
  • Body height at highest point: 50mm
  • Body length: 53mm
  • Live top and earth left 3+6
  • Single HT lead

Replacement ignition coils may give resistance readings that are different to genuine ones or from what it may state in your user manual (which are known to be incorrect at times) but this will not always mean a fault. If you need to check a coil look for readings that remain stable, normal rates could read anything between 0.6 and 5.0 ohms (The higher reading typical for classics) for the primary and 6k to 14k ohms (The lower reading typical for classics) for the secondary. Only when ohms readings vary significantly or have no reading the coil can then be classed as faulty. All the secondary resistance does is change the length of time the plug sparks for, so a higher resistance literally just makes the spark stay for longer and we are talking milliseconds.

Before You Place Your Order...
  1. Note the image may not be exactly as item received and any slight difference will not be inferior or effect performance
  2. Check the fitment list to ensure this item will fit your vehicle
  3. When we refer to right or left, this is as you sit on your vehicle
  4. To find part by SKU, enter the number without "SKU" into the search box
  5. Products containing any fluid or hazardous materials, aerosols, batteries including large lithium jump starters cannot be shipped overseas due to courier restrictions although we can ship UK offshore and Scottish Highlands at higher shipping rates
  6. EU customers should check with your countries customs office to determine what additional costs such as tax or Import duties will be prior to purchasing. These charges are normally collected by the delivery company or when you pick the item up, they are not included in the item price or shipping charge on this website

All parts and accessories are brand new and include VAT where applicable.
Most parts are pattern or aftermarket although some will be genuine but are not always stated as being so.
The use of motorcycle manufacturers' names is for reference purposes only. We do not imply that the products we sell are made by or with the permission of the names listed.

ANF125 Innova 2004-10
ATC250 R 1981-84
CG125 BR Brazil 1984-94
CR80 R 1982
CX500 A 1978-80
CX500 B 1981
CX500 C Custom 1979-84
CX500 D 1979-81
CX500 E Eurosport 1982-84
CX500 TC Turbo 1982-83
CX500 Z 1978-79
FES125 Pantheon 1998-02
FES150 Pantheon 1998-02
GL500 BC Silver Wing 1981-83
GL500 DC Silverwing 1981-83
GL500 IBC Silverwing 1981-83
H100 1980-82
MB50 S 1980-82
MTX200 RW 1983-84
NPS50 Zoomer 2008-09
NX500 Dominator 1995-99
NX650 Dominator 1993-94
RVT1000 R 2000-06
SCV100 F 2005-08
SCV100 Lead 2003-04
XL250 R 1990
XL250 S 1979-80
AR125 A/B 1982-93
AR125 B 1994
EL250 B 1987-89
EL250 D 1990-96
EL250 E 1991-94
EL252 F 1996-03
ER250 A 1983
ER250 B Scorpion 1983-88
GPX250 R (EX250F) Ninja 1988-95
GPZ305 (EX305A) (Chain Drive) 1983
GPZ305 (EX305B) (Belt Drive) 1983-94
KE175 D 1979-83
KLE500 B 2005-07
KLR250 D (KL250) 1985-05
KLR600 (KL600A) 1984, 1988, 1990
KLR600 (KL600B) 1985-94
Z305 (KZ305B) LTD 1987-88
ZZR250 (EX250H) 1990-02
YP250 Skyliner (Rear Disc) 1998-02
YP250 Skyliner (Rear Drum) 1996-98
350 Nevada 1992-97
350 Nevada Club 1998-99
750 Nevada 1991-97
750 SP 1990-92
750 Strada 1993-95
750 Targa 1990-92
NTX350 1987-90
V35 1977-80
V35 C 1982-86
V35 Florida 1986-90
V35 GT 1987-90
V35 II 1981-85
V35 II Imola 1984-89
V35 III 1985-87
V50 1977-79
V50 Custom 1982-86
V50 II 1979-81
V50 III 1981-87
V65 Custom 1982-85
V65 Florida 1986-92
AN250 Burgman 1998-06
AN400 Burgman 1999-06
DR400 S 1979-83
DR650 RSE 1995-96
DR750 S 1988-90
DR800 S (SR42A) 1990
DR800 S (SR43A) 1991-97
DS185 1978-80
DS250 1980
PE175 1978-81
PE250 1977-81
PE400 1980-81
RG125 BU Gamma Mk1 1988
RG125 UC Gamma Mk1 1985-88
RM100 1976-81
RM125 1975-81
RM400 1978-80
RM465 1981-82
RM500 1983-85
RM80 1977-79
RM80 X 1980-81
RS175 1980-82
RS250 1980-81
TM125 1973-75
TM250 1972-75
TS100 ER 1982-89
TS125 ER 1982
TS125 XU 1984
TS185 1972
TS250 (Europe) 1971-76
TS400 Apache 1972-77
VS600 GL Intruder 1995-96
LC50 M Bop 1980-83
MJ50 Towny 1982-83
MS50 1985-87
SR500 1993-95
SRX400 (1JL) 1985-87
SRX400 (3HU1) 1988
SZR660 1995-97
TZR125 1987-92
TZR125 R 1993-96
XT200 1982-83
XT350 1985-99
XT500 1976-85
XT550 Trail 1982-83
XT600 Z Tenere 1983-85
XT600 ZE Tenere 1986-90
XV1600 Wildstar 1999-04
XV250 S Virago 1995-00
XV250 Virago 1989-94
XV535 S Virago 1994-97
XV535 Virago 1987-02
XV920 Virago 1981-83
XVS250 Dragstar 2001-04
XVS650 A Dragstar Classic 1998-07
XVS650 Dragstar 1997-04
XZ550 1982-86
YP250 Majesty (Disc Brakes) 1998-03
YP250 Majesty (Front Disc) 1996-98
YP400 Majesty 2003-08
Type 2

XT600 1983
XT600 43F 1984
