If you are looking for brake or clutch lines for a particular model, please check out our HEL brake line and HEL clutch line categories where we have kits already made up - no need to measure!
HEL

HEL Custom Braided Brake Lines

To see if we have your bike models brake or clutch line specification please put your model followed by line for example; 'CB500 line' or 'SV650 line' etc. without the inverted commas into the search box.

You can now create your own custom brake and clutch lines, individually tailored to your exact specifications.

We assemble each custom hose using non-rusting stainless steel fittings, crimped directly to high performance stainless steel braided hose which is wrapped in a protective wipe clean PVC cover.

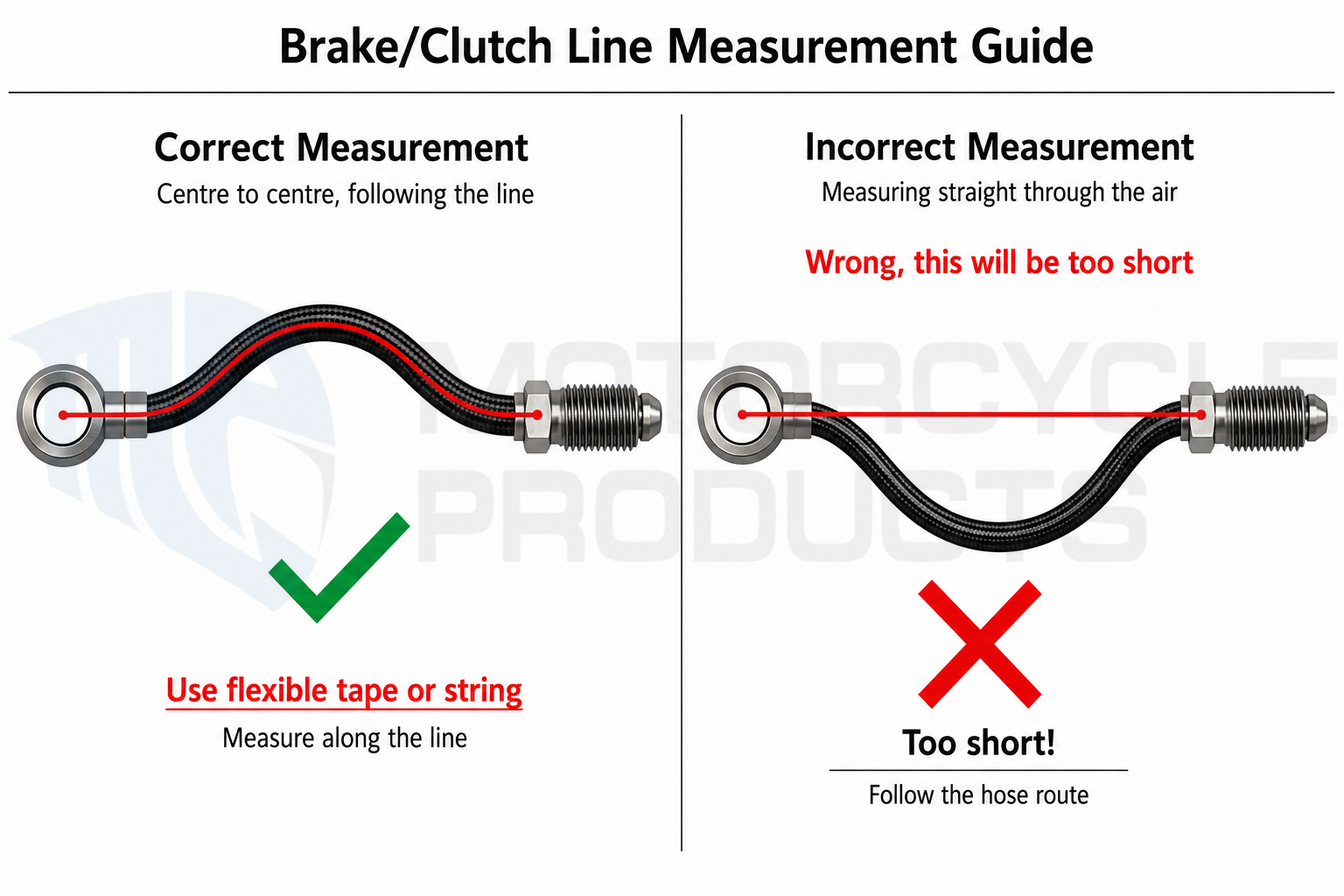

How to Measure Your Existing Brake or Clutch Line

Please measure the overall hose length from the centre of one fitting to the centre of the fitting at the other end.

  • For banjo fittings, measure from the centre of the banjo bolt hole.
  • For threaded fittings, measure from the seating face of the hex, as shown in the drawing below.
  • Always follow the route of the hose itself, not a straight line between the two ends.
  • If your hose has a 45° or 90° bend, use a flexible tape measure or a piece of string laid along the hose, then measure the string.
  • Do not include the extra length of the banjo bolt itself, only measure from the centre of the fitting.
  • For best results, measure your existing hose before ordering.
HEL Custom Braided Brake Lines

Important: Custom made hoses are manufactured to the dimensions you provide, therefore please double-check all measurements before ordering.

Fitment Left

Unless otherwise stated, all our threaded fittings use a dual seat and can be fitted to both concave and convex applications.

Fitment Left - Angle

Fitment Right

Unless otherwise stated, all our threaded fittings use a dual seat and can be fitted to both concave and convex applications.

Fitment Right - Angle

Heatshrink

If you want it, we can put a black heatshrink over the ends of the line.

No

Colour

Choose the colour of the protective PVC coating over the braided hose.

Black

Supports

These are optional and move freely on the line.

Rubber Grommet
Rubber Grommet

Length

The length is measured from the end of the fittings, except for banjo fittings which are measured from the center of the banjo hole.

£34.70Includes 20% VAT

Specifications

Line inner material PTFE
Line outer material Stainless steel (303/304) and protective PVC cover
Fittings material Stainless steel (303/304)
Temperature range -70°C to 260°C (-94°F to 500°F)
Inside diameter 3.5mm (0.138")
Outside diameter 7.5mm (0.295")
Maximum working pressure 290 Bar (4206 PSI)
Burst pressure 870 Bar (12618 PSI)
Minimum bend radius 38mm (1.496")

Lifetime Warranty

We offer a lifetime warranty on this item under normal conditions of use. If you ever need to make a claim for replacement, we will only need a copy of your invoice which you can print from within your account.

Global Certification

All our hoses are tested to extremes in the laboratory, and on the racetrack, where they’re proven time and time again. Our hoses meet and exceed regulatory requirements all over the world, making them road legal anywhere.
