Note: The Fizzy FS1/FS1E used different condensers throughout models, so please check the image as you may need our SKU: 005012 with a single wire.
Yamaha YB100E Condenser Wiring Guide
Original Setup (Solder-On Type):
• Condenser body soldered directly to the contact breaker plate
• No external wires—connections made via solder tabs

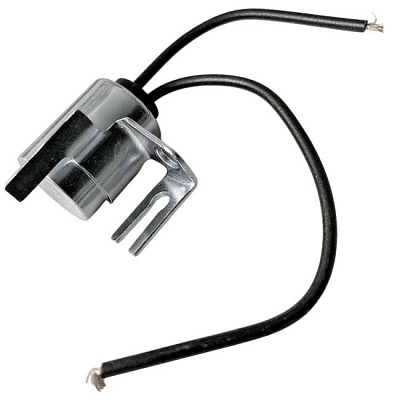

Modern Replacement Setup (2-Wire Type):
• Wire 1 (to points): Connects to the same terminal as the original condenser—this is the signal wire from the points
• Wire 2 (to ground): Secure under a clean screw on the contact breaker plate or to chassis ground
Important:
The black/white wire from the loom is part of the ignition kill circuit and should not be connected to the condenser. Grounding this wire will cut spark.
Summary:
This modern condenser replaces the original solder-on unit used on Yamaha YB100E models. It features two sealed wire leads: one connects to the ignition points, and the other to ground. The black/white wire from the loom is unrelated to the condenser—it is used for ignition shut-off and should remain wired as per original configuration.
Replacement aftermarket part for for the following OEM numbers:
This will suit the following models as well as those listed in fitments:
All parts and accessories are brand new and include VAT where applicable.
Most parts are pattern or aftermarket although some will be genuine but are not always stated as being so.
The use of motorcycle manufacturers' names is for reference purposes only. We do not imply that the products we sell are made by or with the permission of the names listed.
