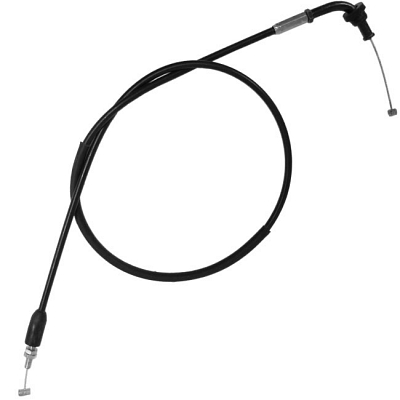

Throttle Cable Suzuki 5830044230 5830044232 5830044100 5830045030

Throttle Cable Suzuki 5830044230 5830044232 5830044100 5830045030

Check the dimensions of this throttle cable before placing an order because there's a couple of variations on some of the Suzuki GS models.

You may need this one SKU: 015730 which has 10mm thread top adjuster & different sized barrel nipples.

• Outer cable visible length: 845mm (not including end fittings)
• Outer cable top fitting: 90' bend, 14mm adjuster
• Outer bottom fitting: 6mm adjuster
• Inner cable overhang: 107mm
• Inner top nipple: 6mm x 7mm barrel
• Inner bottom nipple: 6mm x 10mm barrel

Replacement aftermarket part for Suzuki OEM 58300-44100, 58300-44231, 58300-44232, 58300-44230, 58300-44101, 58300-47010, 58300-47X00, 58300-47200, 58300-44200, 58300-44201, 58300-44500, 58300-44501, 58300-11900, 58300-11901, 58300-45400, 58300-45401, 58300-45030, 58300-47020, 58300-47021, 58300-47060, 58300-47061, 58300-47210, 58300-47211, 58300-47X02

This will suit the following models as well as those listed in fitments:

• Suzuki GS300 L 1985
• Suzuki GS550 DT 1980

Some bikes have one single pull throttle cable while others have two which are:

1. Throttle Cable A or 1 = (Pull)
2. Throttle Cable B or 2 = (Push)

These two cables each have a different use. The pull cable pulls the throttle open, hence the name. The push cable however, doesn't actually push anything, it acts as a safeguard pulling the throttle closed if the spring fails. They are both used in tension, one pulls the throttle open, the other pulls them shut when you roll the throttle forward.
