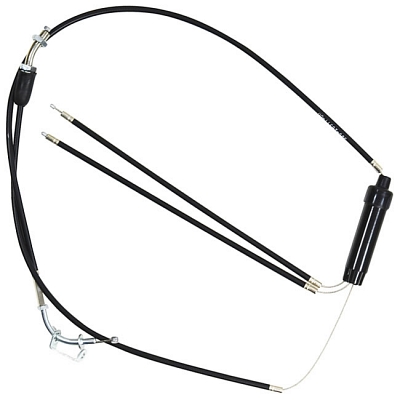

Throttle Cable Yamaha RD125 RD200 DX RS200

£11.25

Includes 20% VAT

Out of Stock

We cannot say when this item will be back in stock due to global events beyond our control.

This product fits the Yamaha RS200 1985 model.

Pack size: Each

SKU: 015777

Throttle Cable Yamaha RD125 RD200 DX RS200

Please Note: The switch mounting bracket on this cable is angled but there is another throttle cable fitted to some versions of models such as for example the RD200 DX that was fitted with a straight switch mounting bracket.
We do not currently have the other version available.

Top cable outer length: 565mm
Top cable inner overhang: 57mm
Bottom cable 1 outer length: 475mm
Bottom cables outer length: 310mm
Outer cable top fitting: 90' bend, 5mm push in, special locking arm
Outer bottom 1 fitting: 20' bend, 8mm adjuster
Outer bottom cables fitting: standard ferrule
Bottom cable inner overhang: 144mm
Bottom cables inner overhang: 65mm
Additional outer info: bottom cable adjuster and top adjuster
Additional fittings Info: bottom cable bend and top bend are loose
Inner top cable nipple: 6mm x 4mm barrel
Inner bottom cable nipple: 3.5mm x 5mm barrel
Inner bottom cables nipple: standard carb

Some bikes have one single pull throttle cable while others have two which are:

Throttle Cable A or 1 = (Pull)
Throttle Cable B or 2 = (Push)

These two cables each have a different use. The pull cable pulls the throttle open, hence the name. The push cable however, doesn't actually push anything, it acts as a safeguard pulling the throttle closed if the spring fails. They are both used in tension, one pulls the throttle open, the other pulls them shut when you roll the throttle forward.
