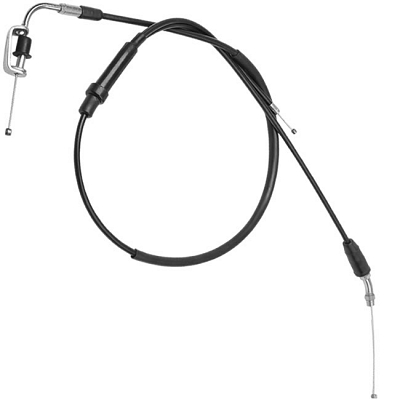

Throttle Cable Yamaha RS125 1975-84 RS100 1975-81 RXS100 1983-98
This throttle cable assembly includes the main upper throttle cable, integrated coupler sleeve and lower cable section. The coupler sleeve clips together and can be opened, so on some models this kit can also be used to replace only the upper/main throttle cable while retaining the original lower carburettor cable already fitted to your bike.
- Main cable outer length: 930mm from the handlebar metal bend to the lower fitting, with 65mm inner cable overhang at the lower end.
- Lower cable outer length: 1140mm from the handlebar metal bend, through the coupler sleeve, to the carburettor top cap, with 135mm inner cable overhang at the slider end.
- Handlebar end: Both inner cables have approx 40mm inner cable exposed at the top inside the metal elbow bend for connection to the handlebar twist grip.
- Coupler sleeve: The black plastic coupler sleeve can be carefully unclipped to separate the cable sections where required.
Fitting note, if using the upper cable section only
If you are only using the upper/main cable section and retaining your original lower carburettor cable, carefully open the black plastic coupler sleeve by releasing the side clip. Inside the sleeve you will see the internal slider block.
Pull the lower carburettor inner cable slightly to create slack, then lift the round nipple out of the slider slot. Remove the lower cable outer casing from the sleeve cap.
Fit your original lower carburettor cable into the new coupler sleeve, making sure the nipple is seated correctly in the slider block. Clip the new coupler sleeve fully closed and make sure it is securely locked together.
Fit the handlebar end into the twist grip and adjust the cable free play before use.
Important: Always check that the throttle opens and closes smoothly before starting the motorcycle. The throttle must snap shut freely when released. If unsure, professional fitting is recommended.
Replacement aftermarket cable assembly suitable for models using, or replacing, the following Yamaha OEM throttle cable references:
- Yamaha 1V1-26311-00-00, 336-26311-00-00, 463-26311-11-00, 463-26311-12-00, 463-263111-00-00, 465-26311-00-00, 465-26311-01-00, 5H5-26311-00-00, 5H5-26311-01-00, 5H5-26311-02-00, 5H5-26311-03-00
- and many more TBA
Please note: Some OEM references may have originally been supplied as single cable sections, while this aftermarket assembly may include additional cable sections depending on the model application. Please compare the product images and cable layout with the cable fitted to your motorcycle before ordering.
Some motorcycles use a single pull throttle cable, while others use two throttle cables:
- Throttle Cable A or 1, pull cable
- Throttle Cable B or 2, return cable
The pull cable opens the throttle when the twist grip is turned. The return cable helps pull the throttle closed when the twist grip is rolled forward, providing an additional safety return action alongside the throttle return spring.
Before You Place Your Order...
- Note the image may not be exactly as item received and any slight difference will not be inferior or effect performance
- Check the fitment list to ensure this item will fit your vehicle
- When we refer to right or left, this is as you sit on your vehicle
- To find part by SKU, enter the number without "SKU" into the search box
- Products containing any fluid or hazardous materials, aerosols, batteries including large lithium jump starters cannot be shipped overseas due to courier restrictions although we can ship UK offshore and Scottish Highlands at higher shipping rates
- EU customers should check with your countries customs office to determine what additional costs such as tax or Import duties will be prior to purchasing. These charges are normally collected by the delivery company or when you pick the item up, they are not included in the item price or shipping charge on this website
All parts and accessories are brand new and include VAT where applicable.
Most parts are pattern or aftermarket although some will be genuine but are not always stated as being so.
The use of motorcycle manufacturers' names is for reference purposes only. We do not imply that the products we sell are made by or with the permission of the names listed.
Compatible Yamaha Models
- Yamaha RS100 (Drum Brakes) 1975-1981
- Yamaha RS100 DX (Front Disc) 1977-1980
- Yamaha RS125 (Drum Brakes) 1975
- Yamaha RS125 DX (Front Disc) 1976-1984
- Yamaha RXS100 1983-1998
