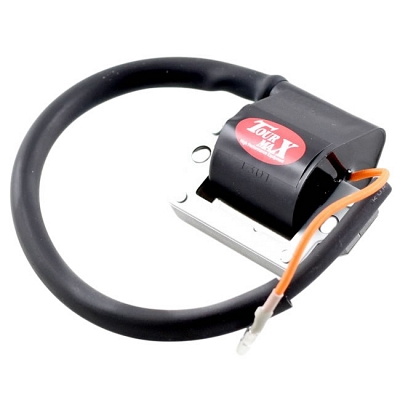

Many models including Fizzy FS1E, YB100, C50, C70, NC50, PA50 and many others may use a longer HT lead than this one at 280mm which is non-replaceable so you will need a different coil such as our SKU: 035525 or SKU: 005135
If your bike has two wires going to the coil send one to the mounting bolt to make a good earth.
Some bikes have a block connector for the wiring so some modification will be required, such as making sure this coil is well earthed where you mount it, clean the area on your bike so its free from paint or rust before fitting.
Replacement aftermarket part for the following OEM numbers:
If your ignition coil has two primary wires and it is not obvious which way round these connect, please do not assume this automatically means the coil is faulty. On many coils the two primary connections are simply the two ends of the same winding, however some ignition systems are polarity sensitive, so it is always best to check against the wiring diagram or test results for your particular bike.
If you wish to test coil polarity, connect a voltmeter with the negative lead inside the spark plug cap or HT lead so it touches the metal or carbon inner, and the positive lead to a good earth point such as the engine block. Set the meter to a high voltage range and crank the engine over, there is no need to start it. A normal connection will usually show an upward movement of the needle or reading. If the reading swings the opposite way, reverse the two primary wires and test again.
Replacement ignition coils may give resistance readings that differ from genuine items or from figures shown in some manuals, and this will not always indicate a fault. When checking a coil, look for readings that are stable and repeatable. As a very general guide, primary resistance can range from approximately 0.6 to 5.0 ohms, with higher figures often found on older machines, and secondary resistance can range from approximately 6kΩ to 14kΩ, again depending on the application and whether caps are fitted. A coil is more likely to be faulty when readings are open circuit, short circuit, or vary significantly between repeated tests.
