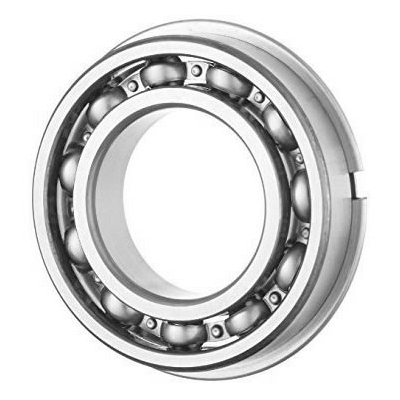

62mm x 25mm x 17mm Crank Bearing Koyo 6305 C3 NR

62mm x 25mm x 17mm Crank Bearing Koyo 6305 C3 NR

• Koyo 6305 C3 NR
• Outer diameter 62mm
• Inner diameter 25mm
• Width 17mm
• Made in Japan

Replacement aftermarket part for the following OEM numbers:

• Suzuki 09262-25097, 09269-25011
• and many more TBA

The internal differences between C3 and C4 bearings is clearance from the ball or roller surface to the outer race.
C2's are common in older OEM engine but if in any doubt use C3.

• We advise using C3 for crank bearings unless you know what you are doing such as requiring C4 used mainly in racing
• The C3 bearing is the bearing that is used for normal applications
• The C4 bearing is looser or has more clearance and is used in hotter environments such as racing
• When running at temperature, the C4 bearing will expand and close the gap
• When bearings are manufactured, there are variances in the amount of movement between inner and outer races which are measured and sorted at the end of the factory production line
• Our deep groove ball bearings Koyo, NTN & HIC are manufactured within Japanese standards
• Bearings with an NR suffix have an outer groove with a snap ring
• Bearings with an N suffix have an outer groove without a snap ring
