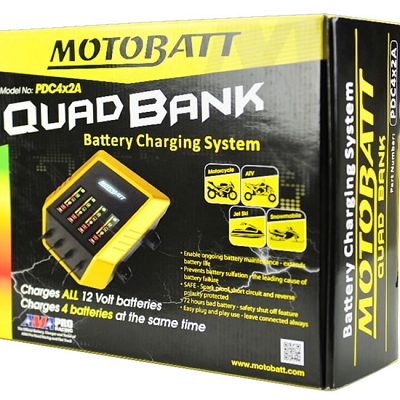

Motobatt PDC4x2A 12v World Quad Bank Battery Charger & Maintainer
The Motobatt PDC4x2A for Standard, GEL and AGM Lead Acid Batteries is completely automatic and can be left on whenever input power is made available to the charger.
The charger output depends on the condition of the battery it is charging.
When the battery is fully charged, the indicating light will turn green and the charger will switch itself to a storage charge mode and will automatically monitor and maintain the battery at full charge
- 12V 4.00A fully automatic battery charger
- Can charge four batteries at once
- Comes with UK plug
- Input: Auto-switching 100 – 240V AC - 50/60Hz
- Input Cable: 6’ / 18AWG
- Output: 12V DC 2A per channel
- Max Charge Current: 2A
- Max Voltage: 14.9V
- Output Cables: 4 X 5’/ 18AWG SPT-2
- Lug/Clamp Cable Length/AWG: 4 X 21”/ 18AWG SPT-2
- Fuse Protected Cables: 7.5A
- Overcharge Protection: Yes
- Reverse Polarity Protection: Yes
- Battery Capacity: Charging 4- 100Ah – Maintenance – all sizes
- Short Circuit Protection: Yes
- Spark Proof: Yes
Your new Motobatt battery charger is equipped with two output leads per channel, a red positive clip lead, and a black negative clip lead and a permanent mount eyelet lead per channel with a 2 pin SAE connector.
Always connect or disconnect the output leads before plugging into AC power.
For all battery types: Connect the red positive (+) lead to the positive terminal of the battery.
Connect the black negative (-) lead to the negative terminal of the battery.
NOTE: If the charger is left connected to a battery for long periods of time, check water levels periodically as directed by the battery manufacturer to ensure electrolyte is maintained at the proper level.
ATTENTION: THE BATTERY CHARGER HAS A SPARK FREE CIRCUITRY. The clips will not spark when touched together. As a good practice, do not allow the two clips touch each other.
The Battery Charger will not produce voltage (turn on) until it recognizes at least two volts from the battery.
The battery charger clips must be clipped to a battery in the correct polarity to initiate output voltage and begin charging. If the charger is hooked up in reverse polarity, the red “Reverse Polarity” light will flash indicating that the connection has been made in reverse of the polarity of the battery and a charge has not been initiated.
The clips must be re-connected in the proper polarity to start the charger, Red to Positive (+ to +) and Black to Negative (- to -).
9 Stage Charging Process
- Qualification Phase: initially ensures that the battery is in good condition prior to launching charge processing. As a safety measure charge process will not begin if battery is below 2.0V
- Rescue Phase: starts if battery voltage has risen unusually high in the early portion of the re-charge cycle. This is usually caused by plate sulfation. Once the rescue phase has succeeded in getting the battery to accept power, normal battery charging will begin
- Soft Start Phase: when the charger has detected a battery at a very low initial state of charge. Voltage and current are delivered at specified rate to help the battery to recover prior to entering pulse phase
- Pulse Phase: provides a high frequency pulse charge to help the newly recovered battery to continue to accept charge as it enters the reconditioning phase
- Recondition Phase: continues to work the battery at a slightly higher voltage and amperage to 're-activate' the battery plates for improved depth of charge and charge acceptance
- Bulk Charge Phase: with the battery now through pulse and reconditioning phases and well on its way to full recovery the bulk charge phase gives the battery constant current taking the battery up to 80% of its capacity
- Absorption Phase: the battery is given constant voltage while the current is reduced based on action taken from monitoring the batteries current state until the battery is 100% charged
- Check Phase: battery will now checked to be sure that it is holding a charge properly and the charger will make a determination and classify the battery for use, or
- Maintenance Phase: battery can be left safely on the charger indefinitely. The unit will monitor the battery and 'turn-on' again as needed to maintain the battery at a full state of readiness
